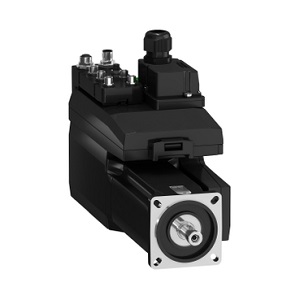

Schneider Electric Lexium 32i

Integrated servo drive from 0.6 to 2.2 kW


​​​​​​​Part of Lexium

With servo motor and servo drive integrated in one housing, the Lexium32i is designed for application areas requiring high precision and advanced motor control.


Features

Simplicity
  • Thanks to our on-line configurator, it is easy to select the four catalogued components which will make your Lexium 32i dedicated to your application.

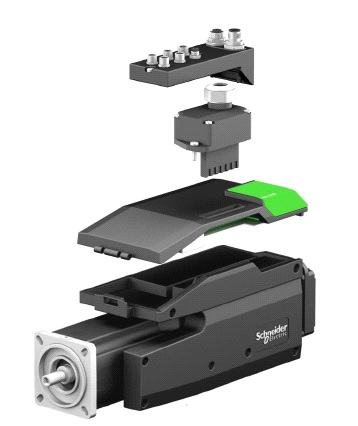

  • The four components are very easy to assemble, simply click on each component and secure.
  • Settings can be stored on the optional memory card. Simply insert the card to recall them.
Flexibility
  • Create your own product to suit your needs by using a combination of the four components to build a product that meets your specific application requirements.
  • Connector modules are available with industrial connector or terminal connector module which can be mounted on top or rear side of the product.
Cost efficiency
  • Reduce cabinet space by up to 60%: Unlike traditional servo drives that are installed in a cabinet, the Lexium 32i servo drive is installed directly on the machine to help you improve cost and energy efficiency.
  • Reduce energy costs by up to 30% due to less cabinet cooling, energy-efficient motor and drive technology, no need for motor cable and cabinet space for the drive
  • Reduce assembly time with simplified wiring and easy cabling
  • If cabinet space is not an issue, the Lexium 32 servo range might be your drive of choice: It consists of three high-performance book-size servo drive models and two motor families.


​​​​​​​Benefits

  • Easy to choose via online configurator
  • Easy to assemble in less than 3 minutes
  • Easy to integrate and maintain


Flexibility

  • Custom-made product based on standard components
  • Flexible cable mounting
​​​​​​​

Cost efficiency

  • Smaller cabinets
  • Reduced wiring
  • Energy-efficient motor and drive technology
